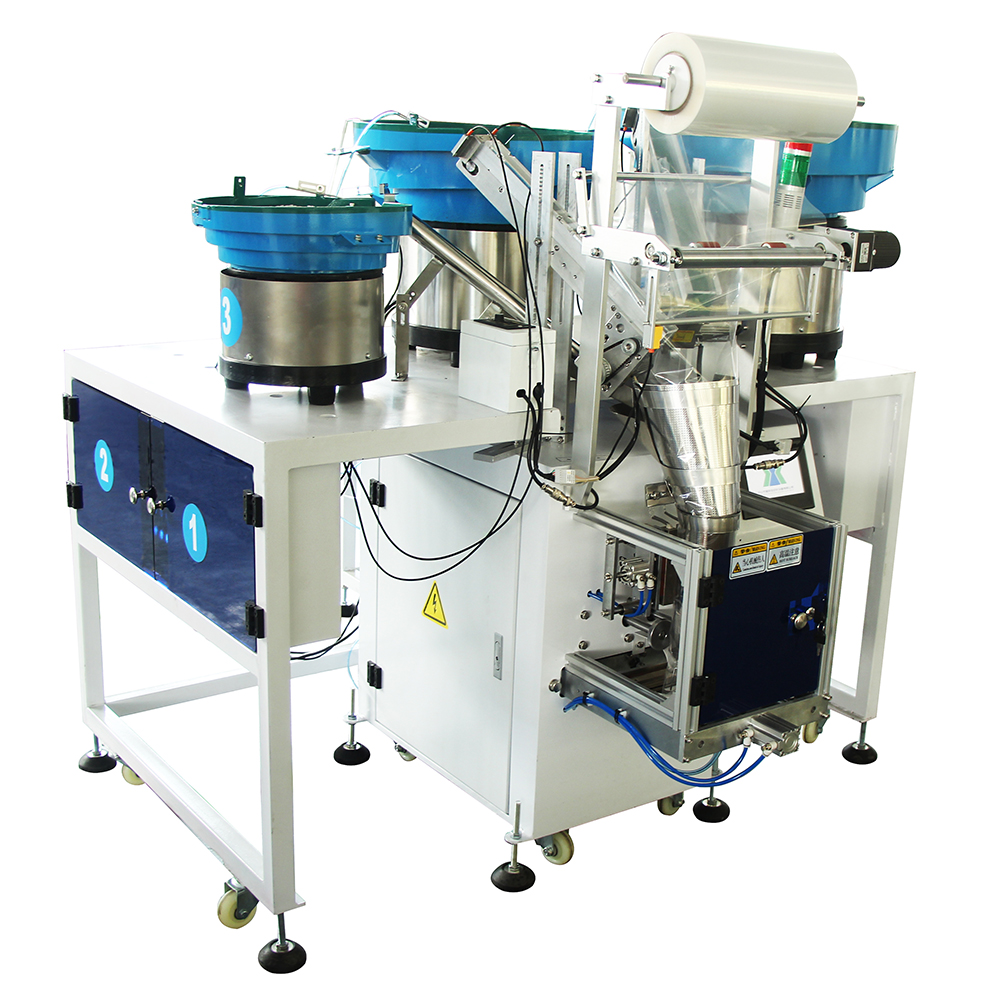

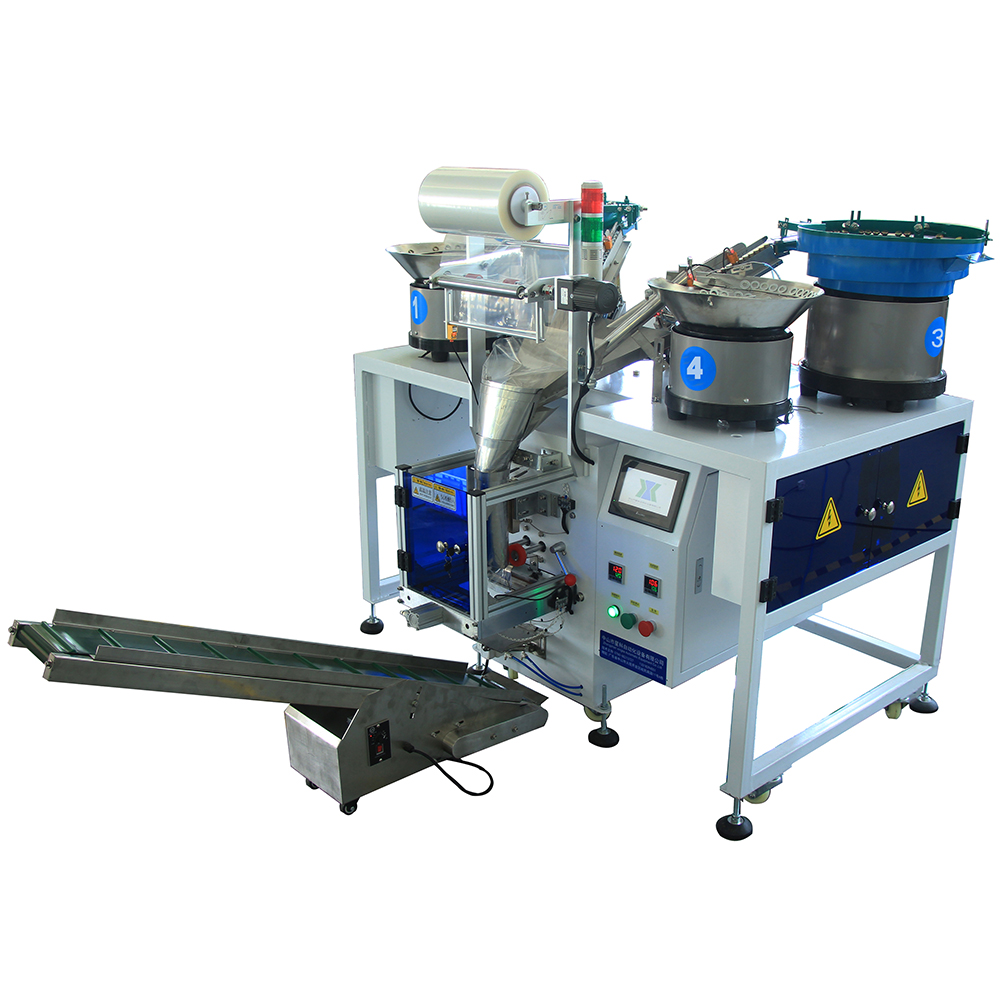

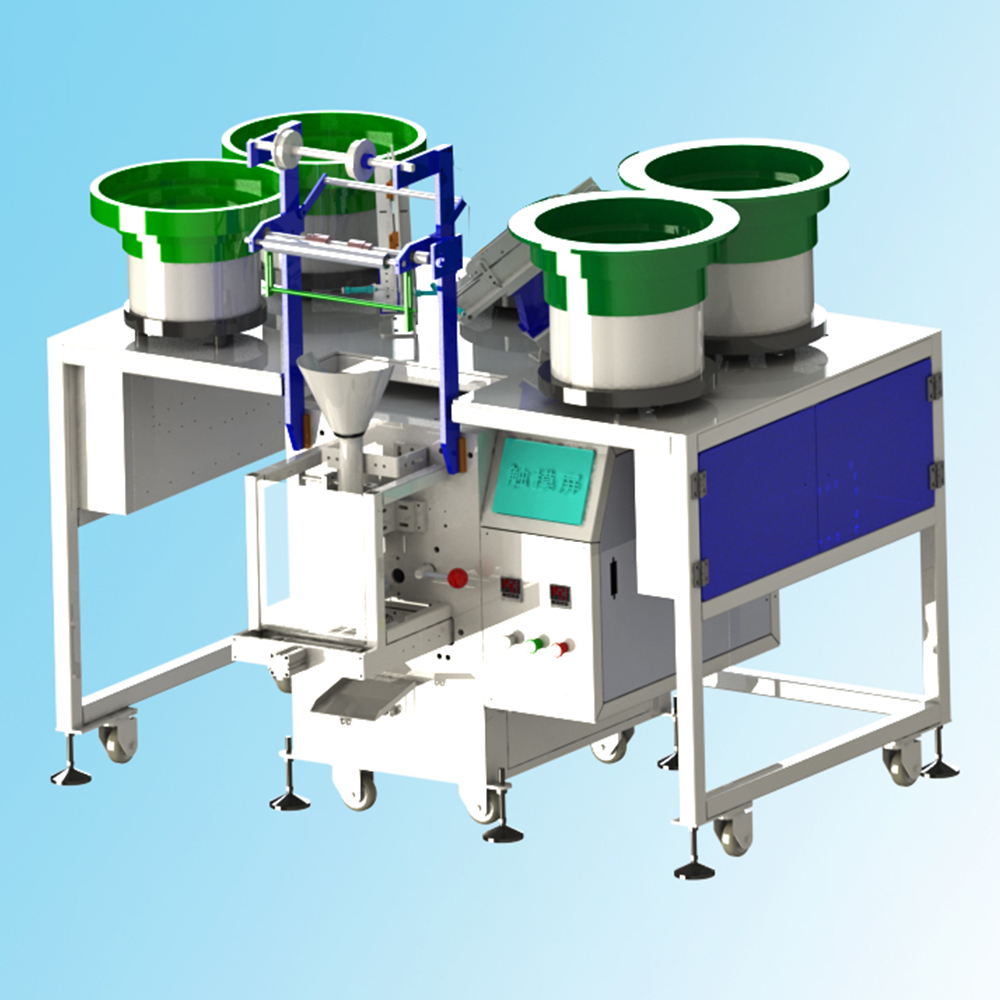

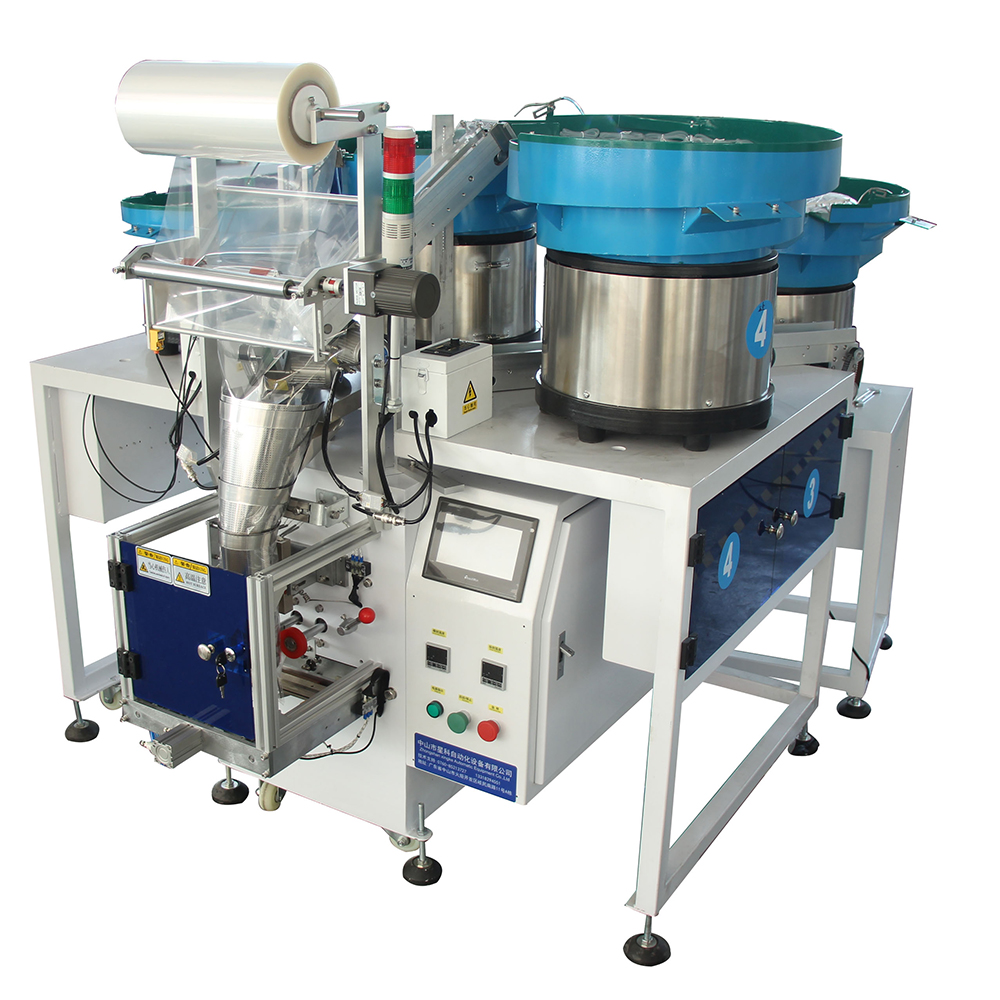

4 Station Automatic Counting And Mixing Packaging Machine XK-B864

XK-B864 is Screw/Nut/ Washer And Gasket 4 Station Automatic Counting And Mixing Packaging Machine.

1) Automatic Counting Packing Machine Technical characteristics
1.Vibrator bowl automatically arranges materials, automatic counting, automatic filling, automatic packaging, sealing function, and output counting.
2.Automatic counting packing machine adopt intelligent temperature control system, stable temperature control, temperature adjustable according to needs.3. The length of the packaging bag is adjustable, the total number of packaging is adjustable. Automatic alarm when the set number is reached.
4.After packaging, the bag shape is uniform, regular, beautiful, and firm, and expansion equipment such as coding machine, check weighing, labeling machine, hoist, etc. can also be added.


2) Scope of application and functional characteristics
1. This product is suitable for automatic mixing or separate packaging of four materials, such as screws, nuts, gaskets, rubber pellets, plastic parts, toys, standard parts, etc. After the vibrator bowl is automatically counted, the product is filled into the forming for automatic packaging , can also use the spare space of the equipment to manually put other materials in mixed packaging.
2. Suitable for "OPP/CPP/lamination film" as a sealing material.


Product Parameters

Equipment model:  XK-B864

Counting method: Fiber counting/blocking and putting

Bag size: Width 40-140 length within 200 (normal 140)

Packing speed: 1-60 bags/min

Sealing shape: Stripes, back seal/three-side seal (conventional back seal)

Voltage power: 220V/50Hz  P≈2KW

Air supply: 0.4-0.8Mpa

Bag mouth shape: Pattern knife tooth type

Dimensions: Length 1350mm/width 1500mm/height 1550mm

Weight: About 450KG
