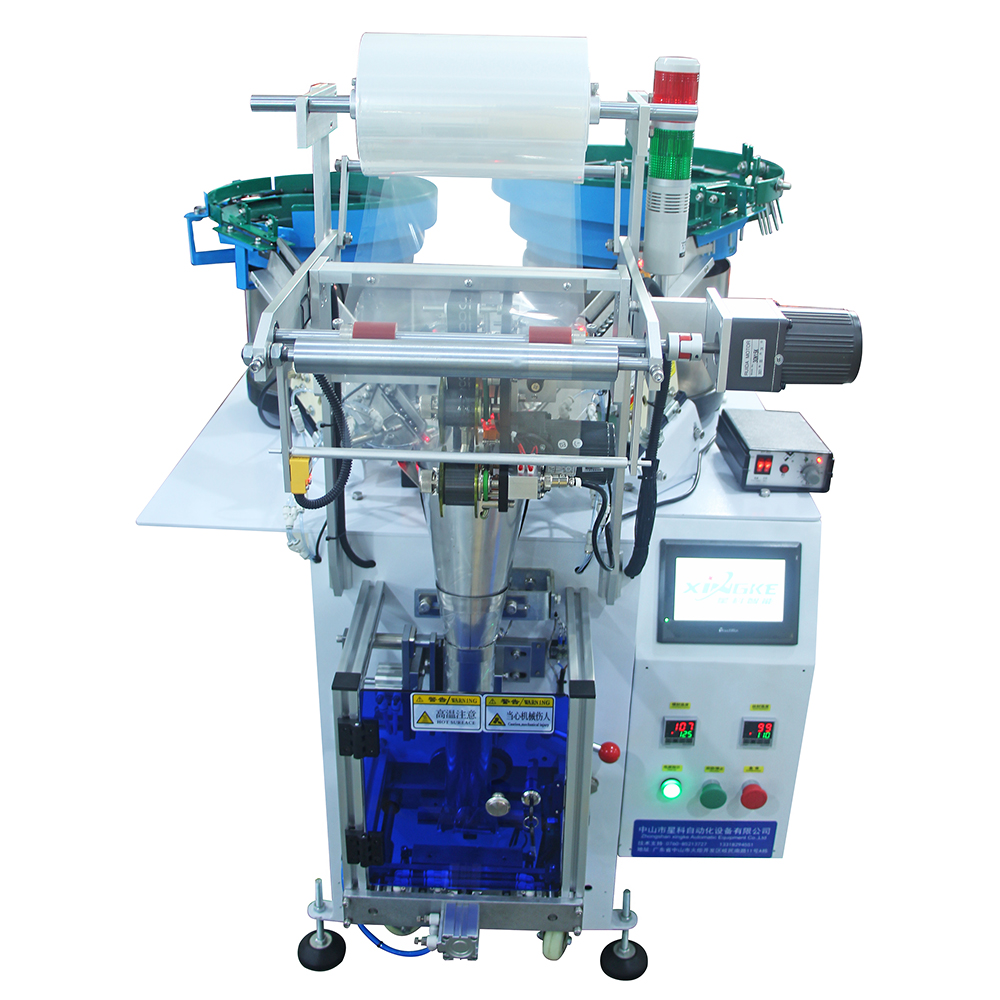

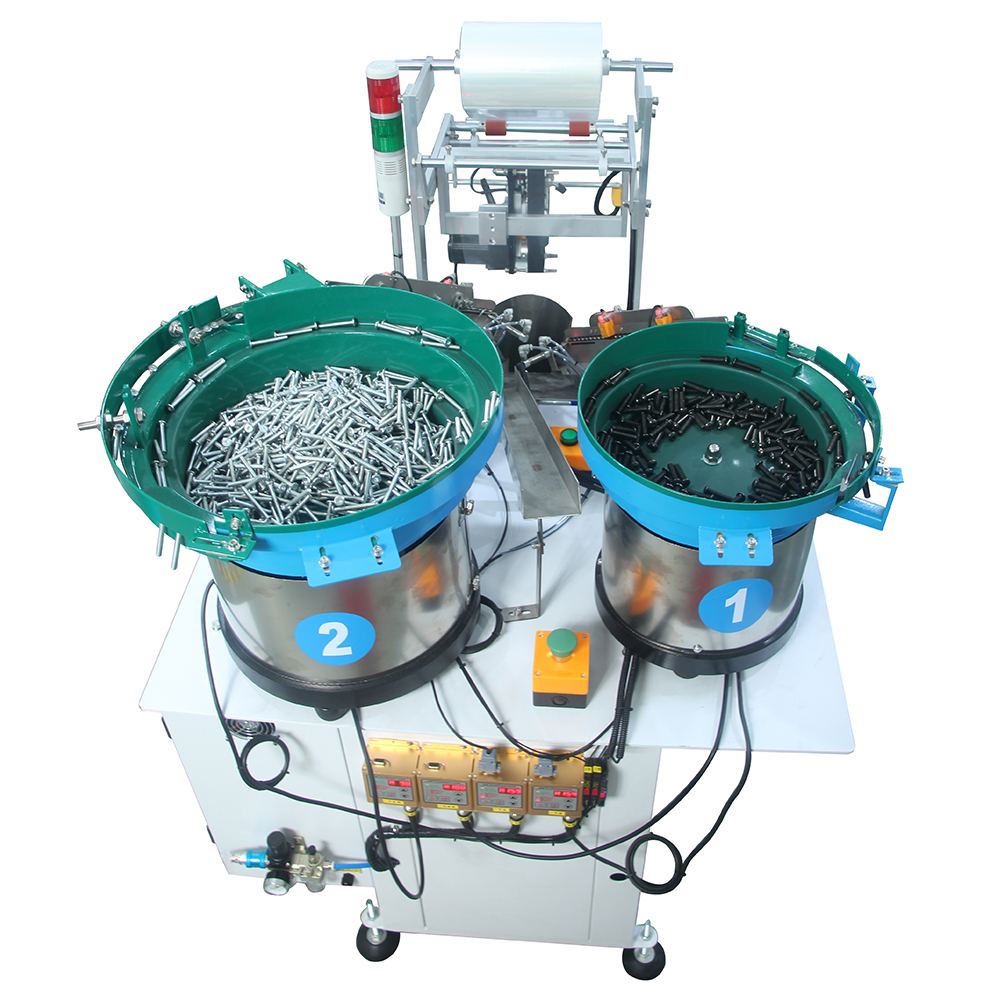

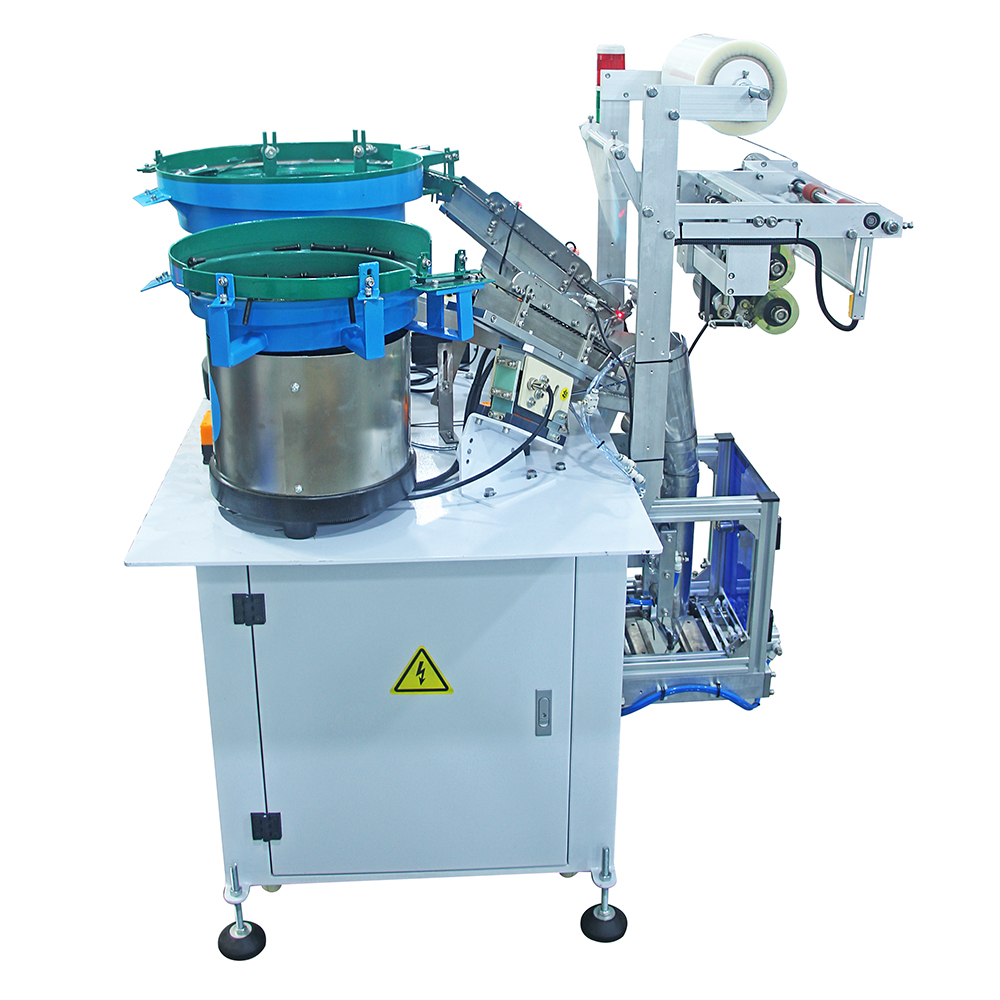

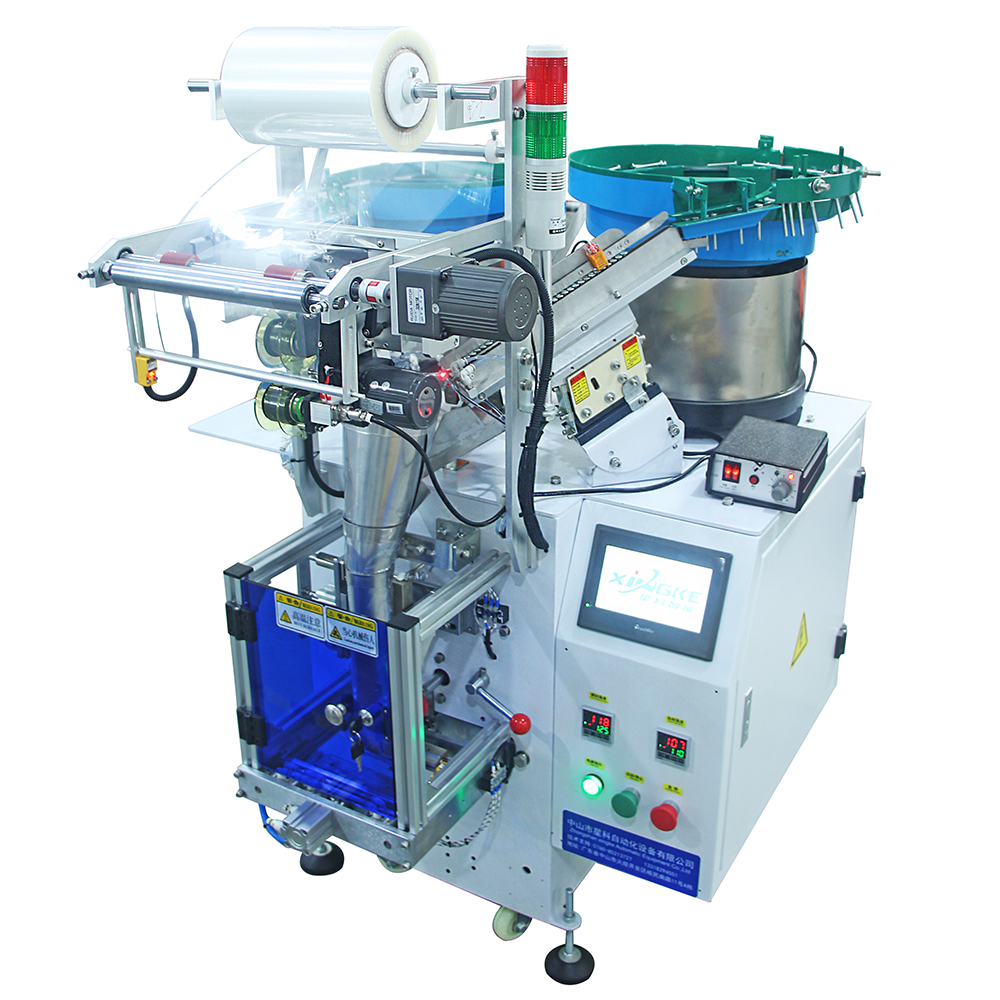

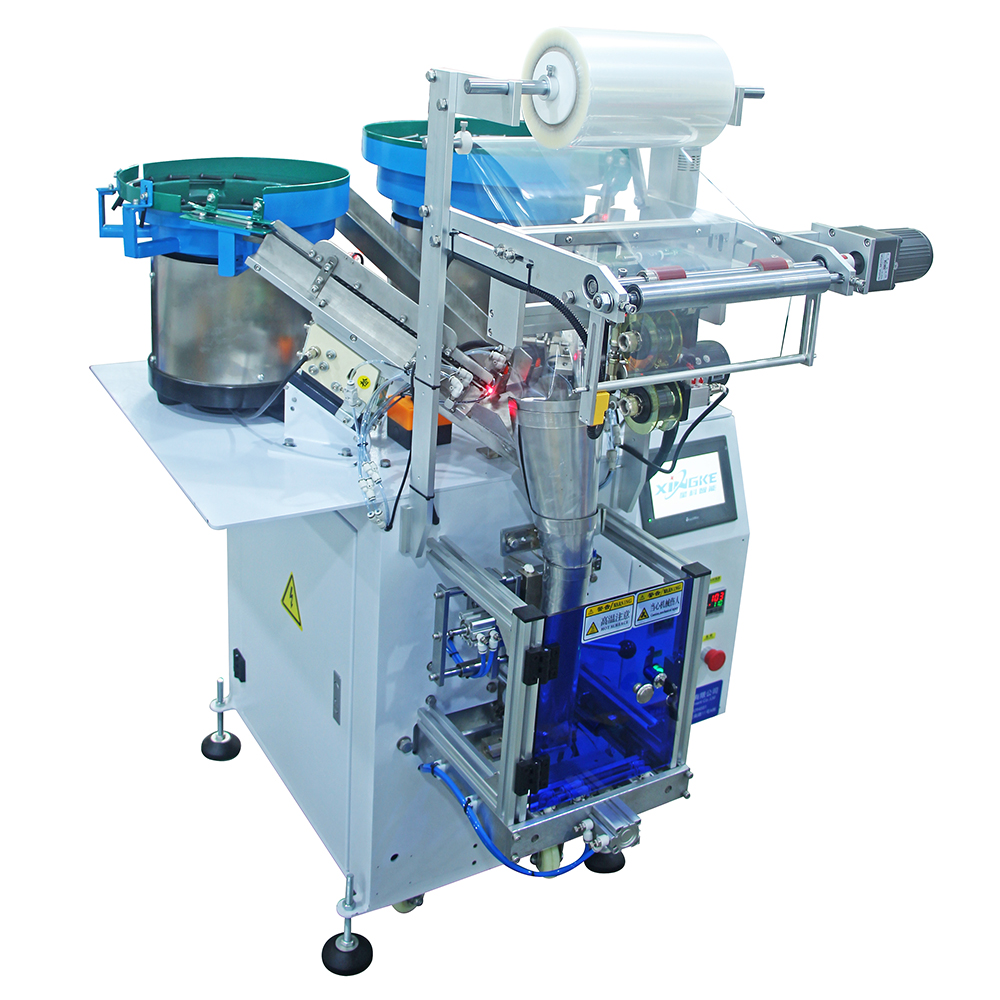

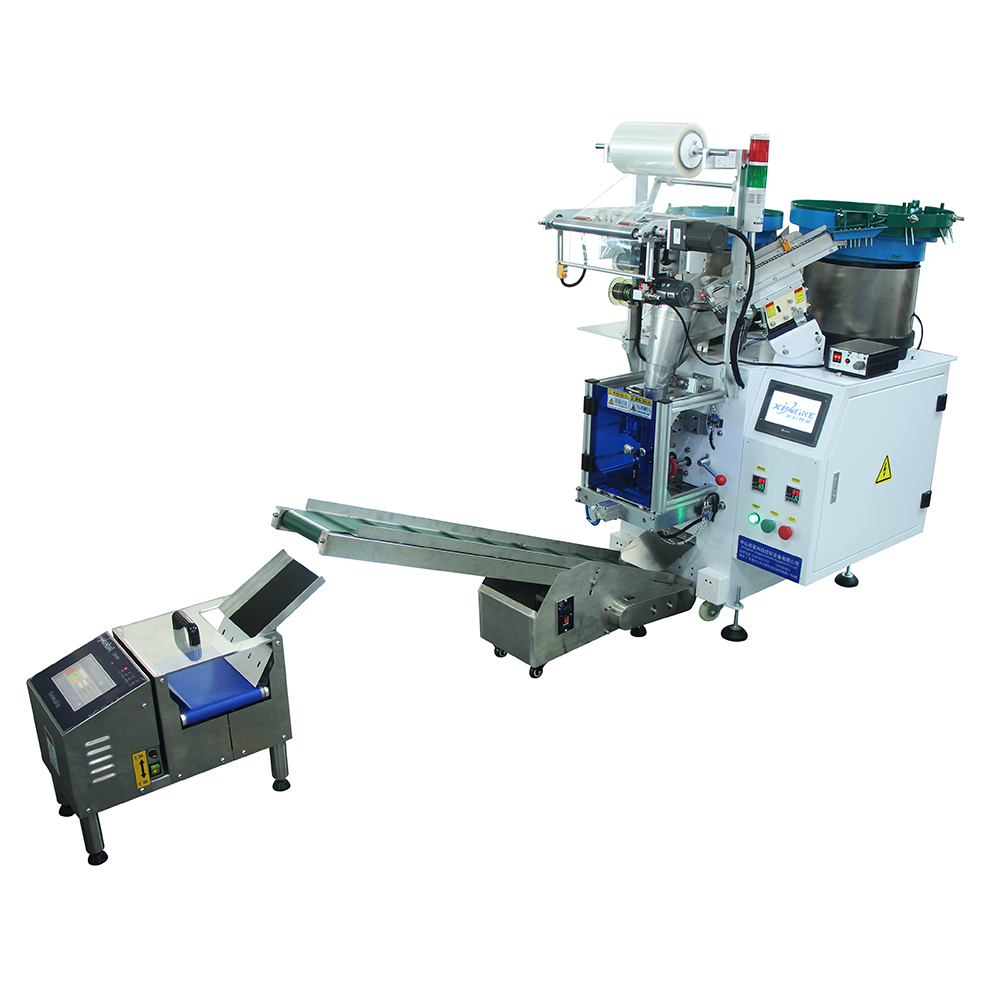

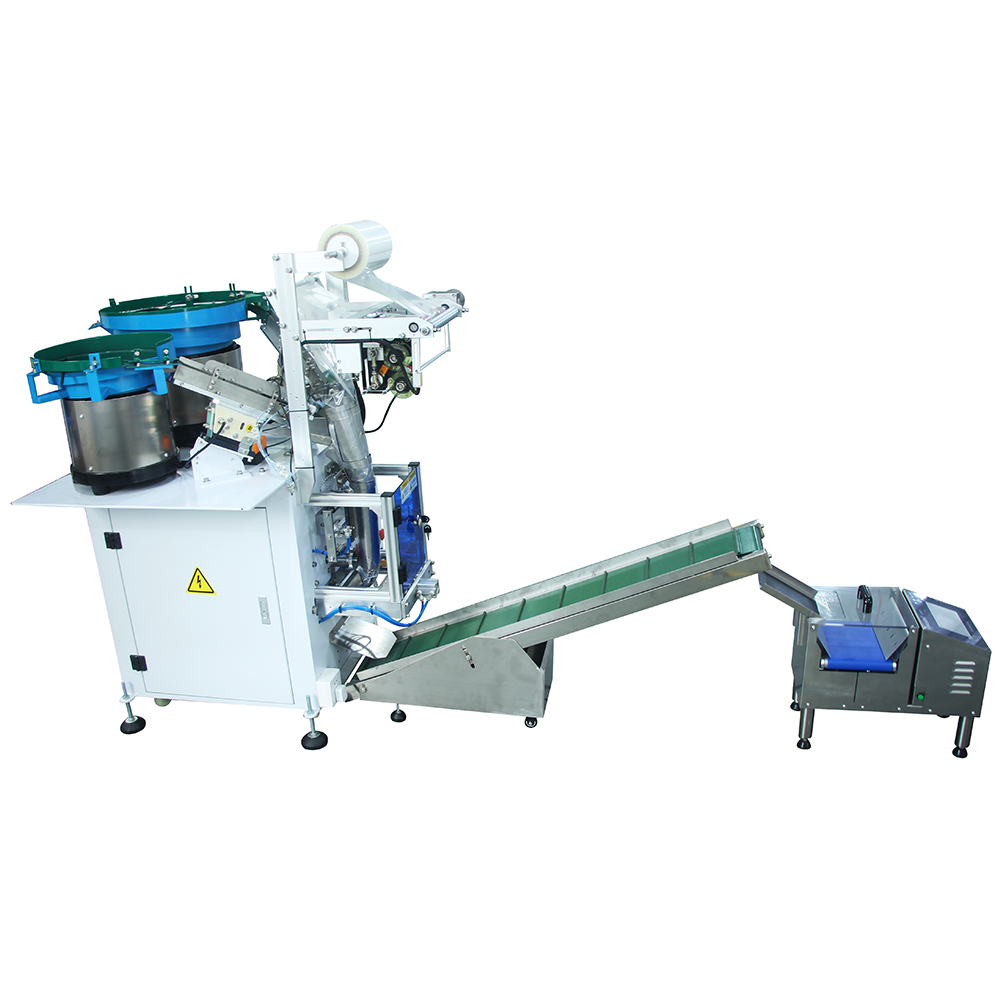

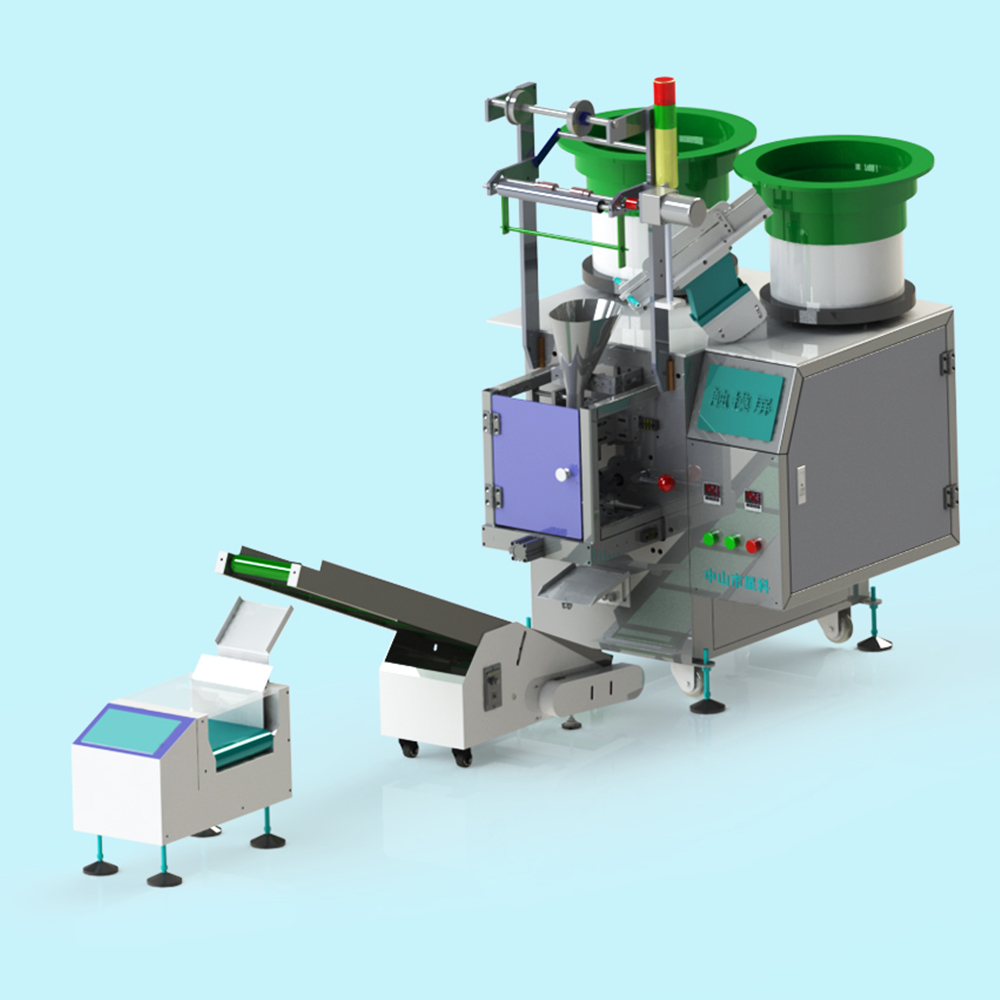

Automatic Counting Machine Bag Lifting Check Weighing XK-B862-B80S

The XK-B862-B80S Automatic Counting Machine with bag lifting and check weighing offers precise counting, weighing, and packaging for screws, nuts, and small hardware. Enhance your productivity with this reliable and efficient industrial packaging solution.

1) Technical characteristics
1.Vibrator bowl automatically arranges materials, automatic counting, automatic filling, automatic packaging, sealing function, and output counting.
2. Adopt intelligent temperature control system, stable temperature control, temperature adjustable according to needs.
3. The length of the packaging bag is adjustable, the total number of packaging is adjustable, and the set number is automatically alarmed.
4. After packaging, the bag shape is uniform, regular, beautiful and firm, and expansion equipment such as coding machine, check weighing, labeling machine, hoist and so on can also be installed.

2) Scope of application and functional characteristics
1.This product is suitable for automatic mixing or separate packaging of 2 materials, such as screws, nuts, flat washers, spring washers, toys, standard parts, etc. After the vibrator bowl is automatically counted, the product is filled into the forming machine for automatic packaging, or use the spare space of the equipment to manually put other materials in mixed packaging.
2. Suitable for "OPP/CPP/PE lamination film" as a sealing material.

Product Parameters

Equipment model: XK-B862-B08S

Counting method: Fiber counting/blocking and putting

Bag size: Width 40-160 mm and within length 200 mm (usually 140)

Packing speed: 1-60 bags/min

Sealing shape: Stripes, back seal/three-side seal (usually back seal)

Voltage power: 220V/50Hz  P≈0.6KW

Air supply: 0.4-0.8MPA

Bag mouth shape: Figure cutter tooth shape

Dimensions: Length 1100mm/width 1000mm/height 1550mm

Weight: About 180KG
